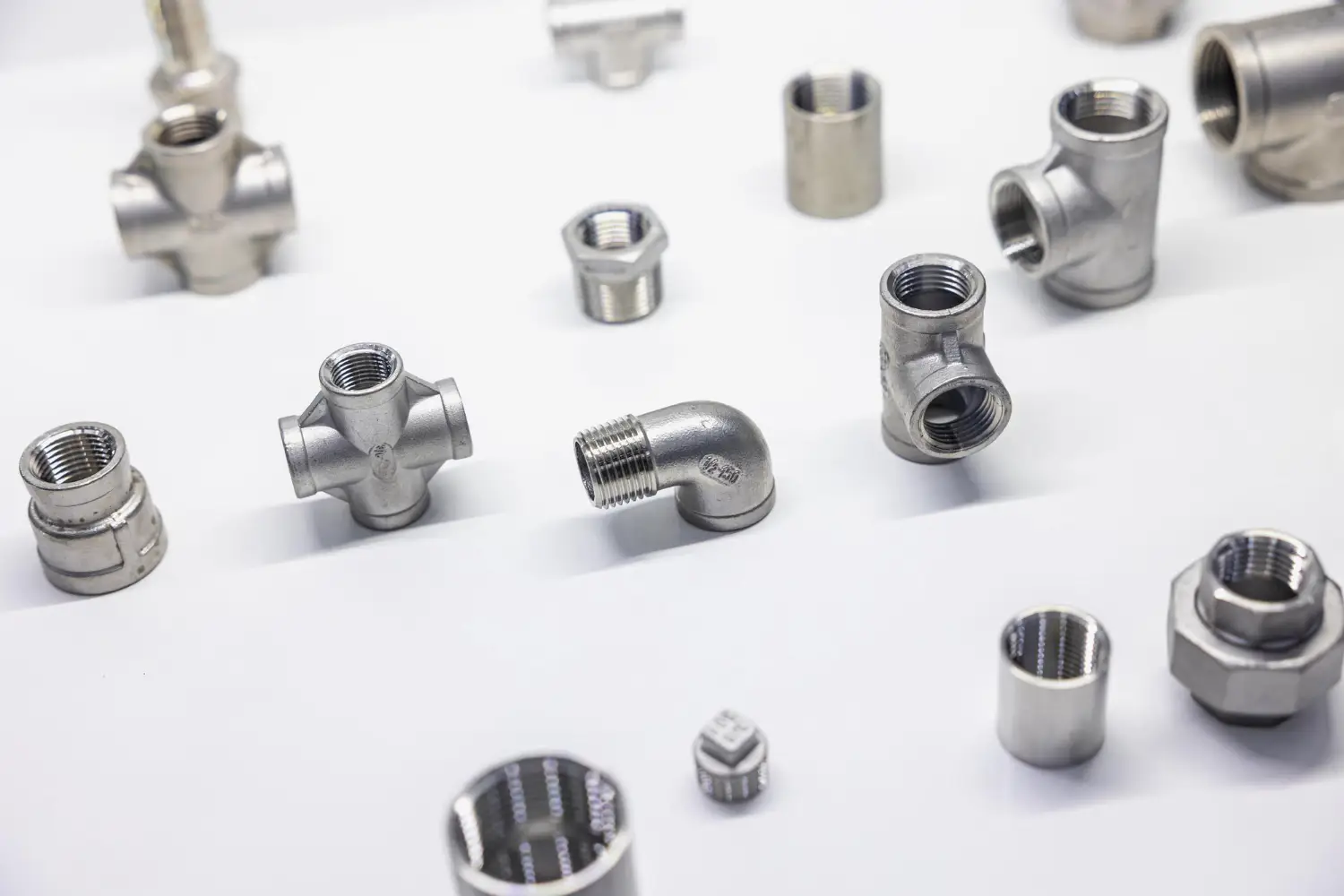

Hydraulic Fittings

At Haiku, we manufacture a wide range of hydraulic fittings designed to provide robust, secure, and leak-free connections for hydraulic systems. These fittings are essential for ensuring the performance and longevity of hydraulic systems in various industries such as construction, mining, automotive, and industrial machinery. Our fittings are meticulously designed, engineered, and tested to meet the highest standards of quality, ensuring optimal functionality even under the most demanding conditions.

Hydraulic Fittings Offered by Haiku

1. BSP (British Standard Pipe) Fittings

BSP fittings are widely used in many industries, including hydraulic systems, due to their versatility and reliability. These fittings are designed to provide secure connections for high-pressure hydraulic hoses. Haiku manufactures a full range of BSP fittings, including BSP male, BSP female, BSPT, and BSPP varieties, to cater to different system requirements. These fittings ensure a leak-proof seal, providing reliable and durable connections for industrial hydraulic systems.

  • Types of BSP fittings:

    BSP male, BSP female, BSPT, BSPP, BSP to NPT, and BSP to SAE.

  • Applications:

    Used in hydraulic systems, fluid transfer, air systems, and other general industrial applications.

2. Metric Fittings

Metric fittings are commonly used in international hydraulic systems and are often required for systems in Europe and Asia. These fittings are designed to meet European and international standards for pressure and sealing, providing secure, leak-resistant connections for hydraulic systems. Haiku offers a wide selection of metric fittings, including various thread sizes and connection types, to meet the specific needs of our customers.

  • Common types:

    Metric male and female threads, Metric to BSP, Metric to JIC, Metric to ORFS.

  • Applications:

    Widely used in automotive, machinery, and construction equipment in international markets.

3. ORFS (O-Ring Face Seal) & JIC (Joint Industrial Council) / SAE (Society of Automotive Engineers) Fittings

ORFS and JIC/SAE fittings are designed for high-performance hydraulic systems where a tight seal and resistance to pressure are essential. These fittings are especially suitable for applications that require robust, vibration-resistant connections. Haiku manufactures ORFS and JIC/SAE fittings to provide superior sealing performance, ensuring minimal risk of leakage or failure under high pressure.

  • ORFS Fittings:

    These fittings use an O-ring face to ensure a tight seal and are ideal for high-pressure hydraulic systems. ORFS fittings are designed to withstand extreme conditions, including high flow and temperature variations.

  • JIC/SAE Fittings:

    JIC (also known as SAE 37° flare fittings) are designed to connect hydraulic lines with a high degree of sealing. These fittings are widely used in high-pressure applications where leak-free connections are critical.

  • Applications:

    Used in aerospace, military, heavy-duty machinery, and high-pressure hydraulic systems.

4. SAE Flanges (Code 61 & Code 62)

SAE (Society of Automotive Engineers) flanges are commonly used in high-pressure applications and are particularly well-suited for systems that require strong, durable, and leak-free connections. Haiku manufactures both Code 61 and Code 62 SAE flanges, which are designed for use in large hydraulic systems, ensuring high-pressure integrity and reliability.

  • Code 61 Flanges:

    These flanges are used for medium-pressure systems and feature a compact, lightweight design. They are ideal for systems that require reliable, leak-resistant connections.

  • Code 62 Flanges:

    Code 62 flanges are designed for high-pressure systems, providing a durable and robust solution for hydraulic applications requiring high flow rates and extreme operating conditions.

  • Applications:

    Commonly used in industries such as construction, agriculture, mining, and industrial manufacturing, where large-scale hydraulic systems are employed.

5. Customized Fittings:

Haiku understands that different applications require unique solutions. That’s why we also offer customized hydraulic fittings designed to meet the specific requirements of our customers. Whether it's for a specialized machine or a unique system configuration, we work closely with clients to develop custom fittings that meet exact specifications.

  • Code 61 Flanges:

    These flanges are used for medium-pressure systems and feature a compact, lightweight design. They are ideal for systems that require reliable, leak-resistant connections.

  • Code 62 Flanges:

    Code 62 flanges are designed for high-pressure systems, providing a durable and robust solution for hydraulic applications requiring high flow rates and extreme operating conditions.

  • Applications:

    Commonly used in industries such as construction, agriculture, mining, and industrial manufacturing, where large-scale hydraulic systems are employed.

Applications of Haiku Hydraulic Fittings

Haiku’s hydraulic fittings are used across a broad spectrum of industries and applications, including:

  • Construction Equipment:

    Hydraulic systems for excavators, loaders, and other heavy machinery.

  • Mining:

    High-pressure systems for mining drills, rock crushers, and conveyor systems.

  • Agriculture:

    Hydraulic systems for tractors, harvesters, and other agricultural machinery.

  • Automotive:

    Hydraulic fittings for automotive manufacturing and repair.

  • Industrial Equipment:

    Fluid power systems for manufacturing, processing, and material handling equipment.
